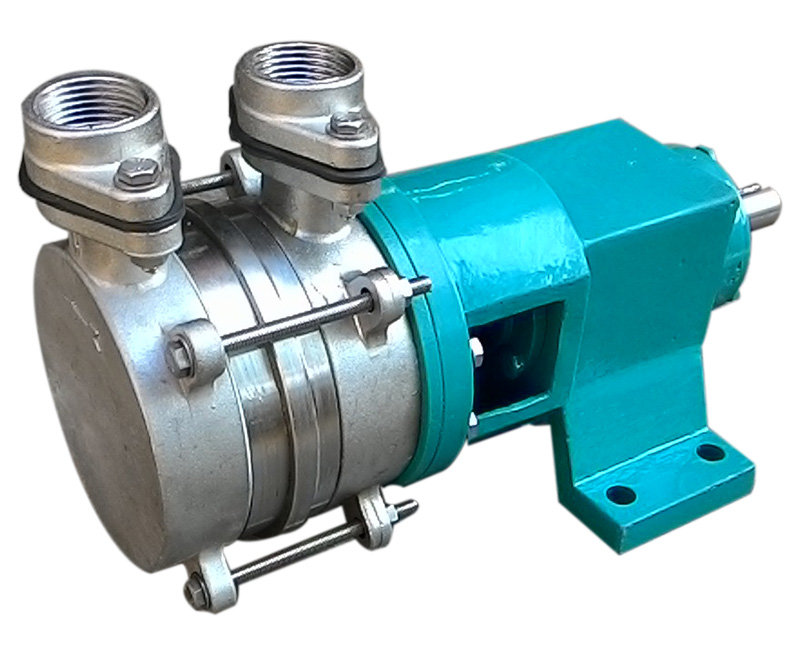

SSP - Self Priming Regenerative type Monoblock Pumps

SSP Series pumps are Self Priming pumps which are ideal for use in barrel unloading, tanker unloading, Chemical transfer from sump to overhead tank and many process application. All parts are made from Graded SS 316 investment casting which gives better quality, surface finish and longer life. Precision manufacturing with precise tolerance enables pump to deliver high capacity and head. SSP series pumps can also be used for boiler descaling, pressure boosting, water recirculation, beverages, petrol , kerosene and diesel etc. Shaft sealing is done by Mechanical seal which is available in Carbon, Ceramic and Silicon as per the requirement.

All RPS series pumps are available in Bare Shaft and Monoblock design with std. TEFC motor OR Flameproof motors

Material of Construction   :  SS 316
Operating Temp                  :  Upto 200 deg C.




Features & Application
  • Self Priming Action. No need of Foot Valve
  • All SS 316 contact parts
  • Compact design and efficient operation
  • Use ful for barrel unloading of Mild Chemicals, Acids
  • For Pharmaceutical , Beverages and DM Water
  • Textile dyes and solvents etc


SSP Series Flow Chart, 2900 RPM models

Model Suction Delivery HP 2 5 10 15 20 25 30 35 40 45
SSP 2 1/2" 1/2" 0.5 32 28 24 20 16 12 9 6
SSP 2A 1" 1" 0.5 36 31 27 23 18 13 8
SSP 3 1" 1" 0.75 45 42 36 32 25 20 15 12 8
SSP 4 1" 1" 1 55 50 45 42 38 32 26 20 14 6
                    Head in meters
                    Capacity in m3/hr
