| Series PMD |
| |
| Series PMD : Seal less Magnetic Drive pumps in PP & PVDF construction |
| |

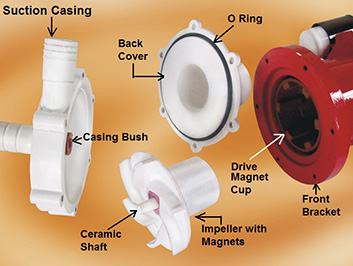

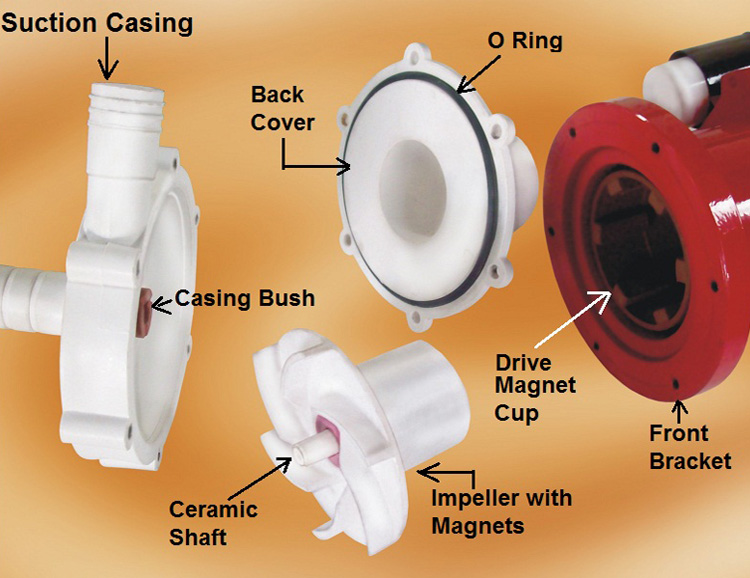

These pumps are 100% Leak Proof Magnetic Drive pumps. There is no shaft seal used and the impeller is provided the rotation with the help of Magnetic drive. High Power permanent rare earth Magnets are used in magnetic drive arrangement which gives high mechanical efficiency with zero slippage. |
| |
| These pumps are 100% Leak Proof and ideally suitable for handling corrosive chemicals, toxic and fuming liquids, acids, electroplating chemicals, dyes, solvents, petrol, kerosene, pharmaceutical and food syrups etc. |
| |

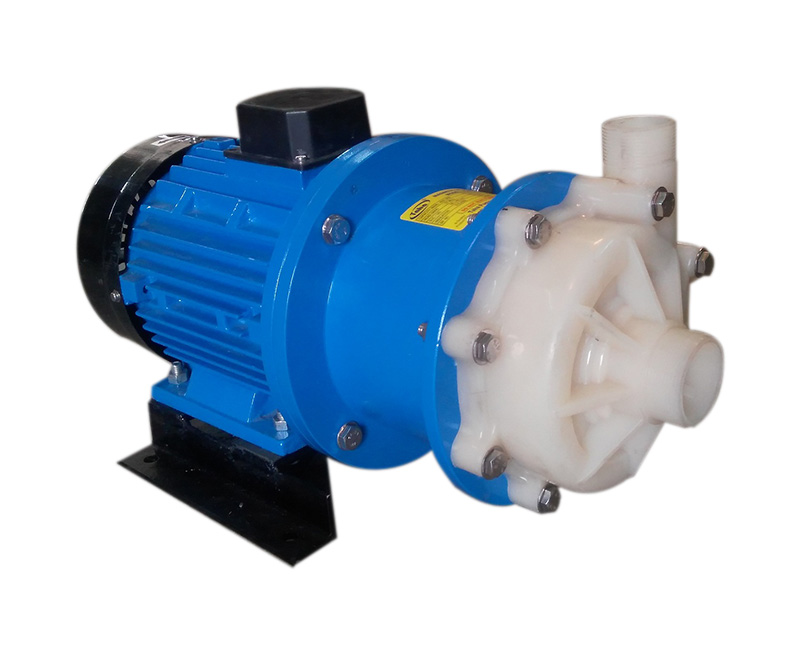

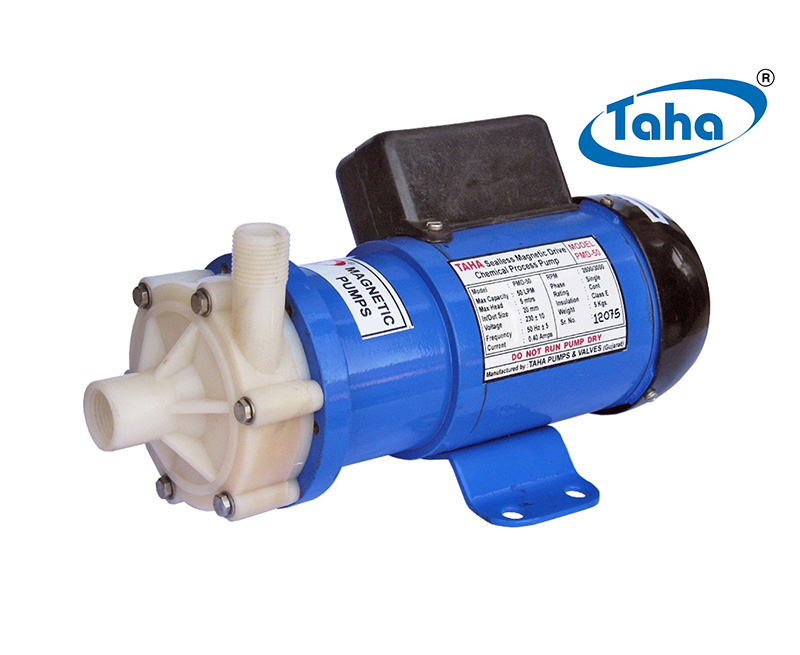

| All PMD Magnetic Drive Pumps are available in Monoblock type only with Std TEFC motor and Flame Proof motors |
| |
| Material of Construction : Poly Propylene Glass filled , PVDF (polyvinylidene fluoride) |
| |
| Operating Temp : PP upto 80 deg C . PVDF upto 110 deg C |
| |
|
|
| Features & Application |
| |
• 100% Leak Proof Pumps
|
• No Shaft Seal to maintain, replace
|
• High Efficiency due to permanent magnet power coupling
|
• Simple design, easy to operate & maintain
|
| • Very useful for handling highly corrosive chemicals, plating chemicals, toxic & fuming liquids |
| |
| Range |
| |
| • Capacity from 10 LPM upto 750 LPM |
| • Head upto 40 mtrs. |
| • Moc in PP, SS-316 & PVDF |
| • Special Pumps for high temp upto 1500 C |
|
|
| |
|
| |
| |
| PMD 15 |
14 x 14 mm Nozzle |
0.12 |
Single |
15 |
2.5 |
| PMD 30 |
18 x 18 mm Nozzle |
0.16 |
Single |
30 |
4 |
| PMD 50 |
20 x 20 mm Nozzle |
0.25 |
Single/Three |
50 |
5 |
| PMD 85 |
26 x 26 mm Nozzle |
0.5 |
Single/Three |
85 |
9 |
| PMD 125 |
26 x 26 mm Nozzle |
0.75 |
Single/Three |
125 |
12 |
| PMD 170 |
1" x 1" BSP/Flanged |
1 |
Single/Three |
170 |
14 |
| PMD 300 |
11/2" x 11/4" BSP/Flanged |
1.5 |
Three |
280 |
20 |
| PMD 400 |
2" x 11/2" Flanged |
2 |
Three |
400 |
24 |
| PMD 500 |
2" x 11/2" Flanged |
3 |
Three |
500 |
30 |
| PMD 600 |
21/2" x 2" Flanged |
5 |
Three |
620 |
34 |
|
| |
