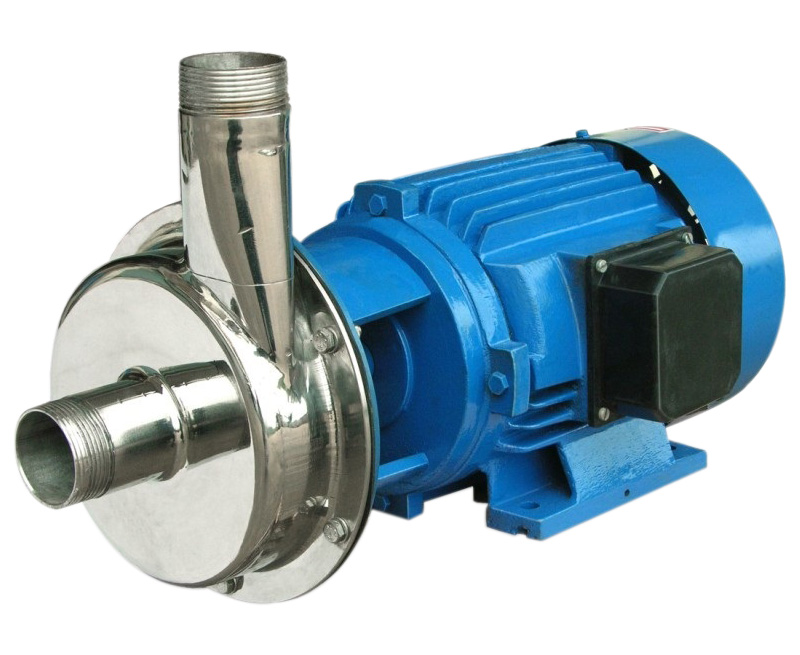

Series CFP – SS 316 Centrifugal Chemical transfer Pumps

Complete SS 316 Horizontal Centrifugal pumps with High head & High discharge design. Front openable Suction casing for easy operation and maintenance. Hydraulically balanced impeller for better efficiency and lower power consumption.  Fabricated from SS 316 rolled steel sheet give better surface finish and low liquid friction.  Sealing by Mechanical seal of either Carbon, Ceramic, Silicon or Pure Teflon gland packing.

Ideally suitable for mild chemical transfer from underground to overhead tank, unloading from tanker, washing and cleaning of parts, Food and dairy products, beverages etc.

All CFP series pumps are available in Bare Shaft and Monoblock design with std. TEFC motors OR Flameproof motors.

Material of Construction   :  SS 316
Operating Temp                  :  Std. 110 deg.  High Temp upto 250 deg .




Features & Application
  • simple & Front open design
  • All contact parts of SS-316 material
  • Best in class efficiency with high head and high capacity
  • Available in monoblock & Bare type
  • Sealing by Mechanicak Seal of Carbon, Ceramic, SC, TC, & Pure Teflon Packing
  • Special high temp pump upto 250 C

Range
  • Capacity from 20 LPM to 2000 LPM
  • Head upto 60 mtrs.

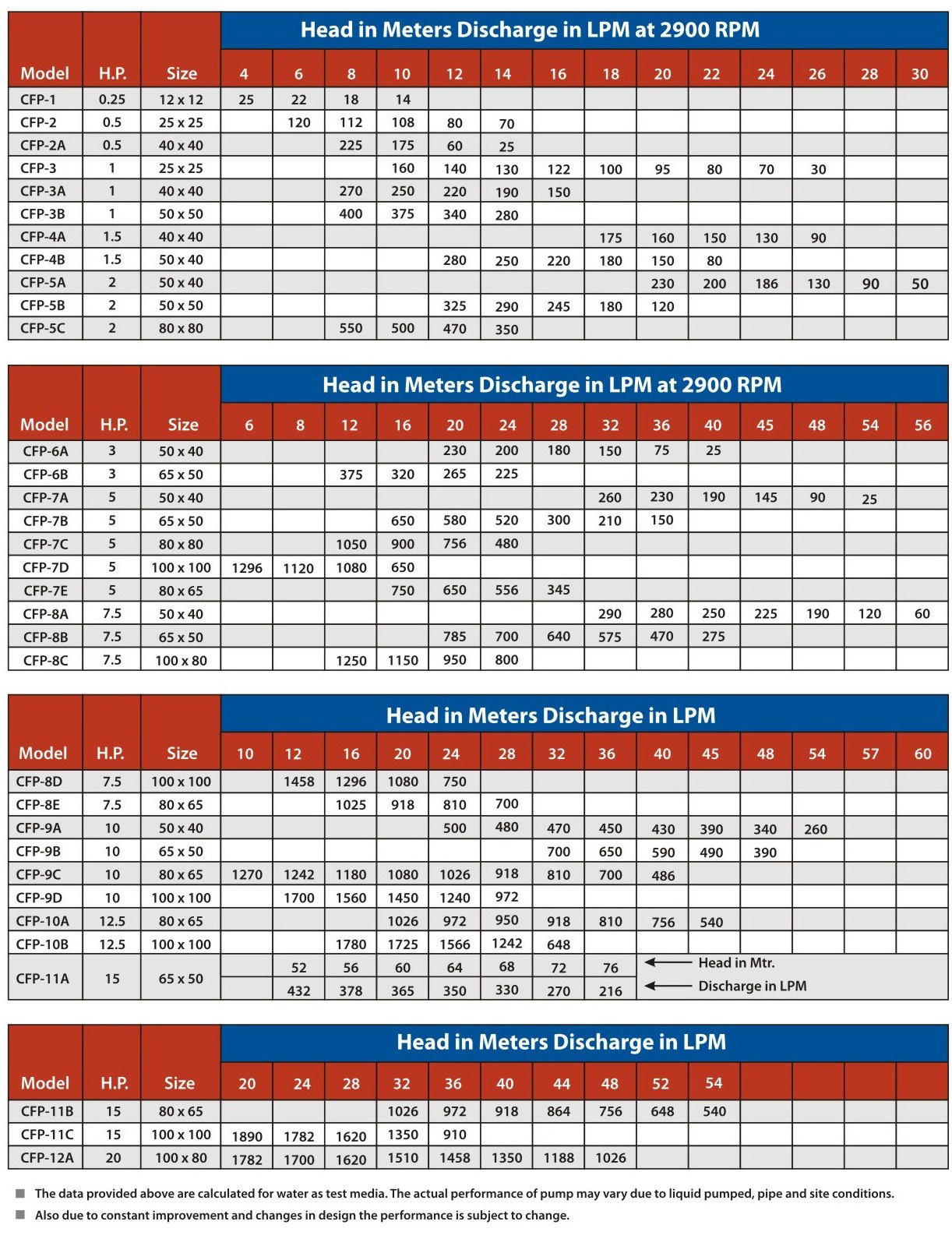

Head in Meters Discharge in LPM at 2900 RPM

Model H.P. Size 4 6 8 10 12 14 16 18 20 22 24 26 28 30
CFP-1 0.25 12 x 12 25 22 18 14
CFP-2 0.5 25 x 25   120 112 108 80 70
CFP-2A 0.5 40 x 40     225 175 60 25
CFP-3 1 25 x 25       160 140 130 122 100 95 80 70 30
CFP-3A 1 40 x 40     270 250 220 190 150
CFP-3B 1 50 x 50     400 375 340 280
CFP-4A 1.5 40 x 40               175 160 150 130 90
CFP-4B 1.5 50 x 40         280 250 220 180 150 80
CFP-5A 2 50 x 40                 230 200 186 130 90 50
CFP-5B 2 50 x 50         325 290 245 180 120
CFP-5C 2 80 x 80     550 500 470 350

Head in Meters Discharge in LPM at 2900 RPM

Model H.P. Size 6 8 12 16 20 24 28 32 36 40 45 48 54 56
CFP-6A 3 50 x 40         230 200 180 150 75 25
CFP-6B 3 65 x 50     375 320 265 225
CFP-7A 5 50 x 40               260 230 190 145 90 25
CFP-7B 5 65 x 50       650 580 520 300 210 150
CFP-7C 5 80 x 80     1050 900 756 480
CFP-7D 5 100 x 100 1296 1120 1080 650
CFP-7E 5 80x 65       750 650 556 345
CFP-8A 7.5 50 x 40         650     290 280 250 225 190 120 60
CFP-8B 7.5 65 x 50           700 640 575 470 275
CFP-8C 7.5 100 x 80     1250 1150 785 800

Head in Meters Discharge in LPM

Model H.P. Size 10 12 16 20 24 28 32 36 40 45 48 54 57 60
CFP-8D 7.5 100 x 100   1458 1296 1080 750
CFP-8E 7.5 80 x 65     1025 918 810 700
CFP-9A 10 50 x 40         500 480 470 450 430 390 340 260
CFP-9B 10 65 x 50             700 650 590 490 390
CFP-9C 10 80 x65 1270 1242 1180 1080 1026 918 810 700 486
CFP-9D 10 100 x 100   1700 1560 375 1240 972
CFP-10A 12.5 80 x 65       1026 972 950 918 810 756 540
CFP-10B 12.5 100 x 100     1780 1725 1566 1242 648
CFP-11A 15 65 x 50   52 56 60 64 68 72 76 Head in Mtr.
  432 378 365 350 330 270 216 Discharge in LPM

Head in Meters Discharge in LPM

Model H.P. Size 20 24 28 32 36 40 44 48 52 54
CFP-11B 15 80 x 65       1026 972 918 864 756 648 540
CFP-11C 15 100 x100 1890 1782 1620 1350 910
CFP-12A 20 100 x 80 1782 1700 1620 1510 1458 1350 1188 1026
